Bunk Mounting Kit — Model 2213/4B

Description

General

2213/4B – Bunk Mounting Kit

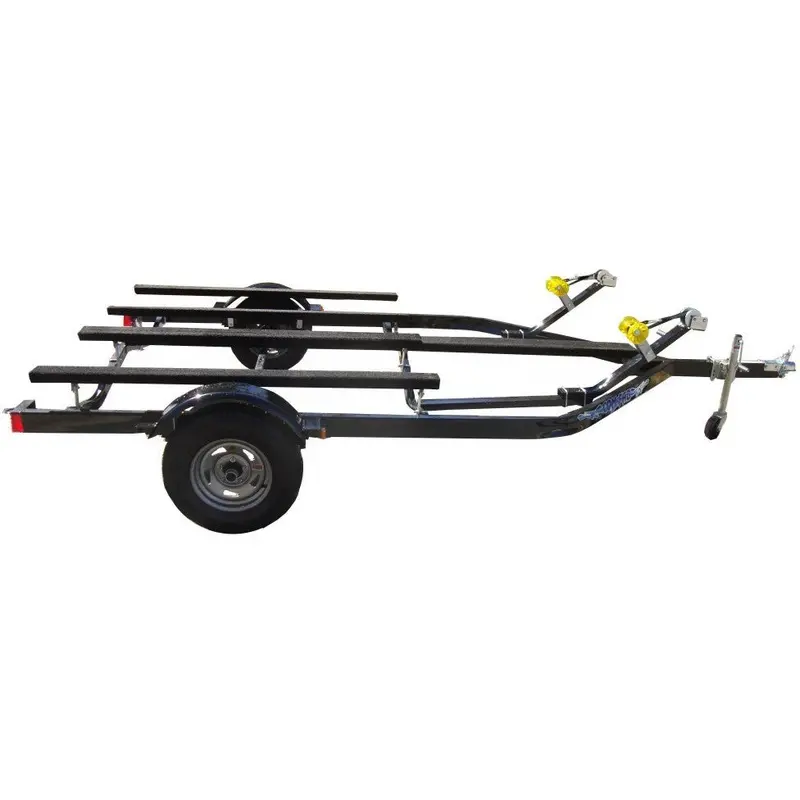

These are all of the requisite materials needed to mount a 2″ x 4″ x 6′ Black Marine Carpeted Bunk Board onto a 2213B trailer model. This kit can also be used to mount a 2″ x 4″ x 7′ Black Marine Carpeted Bunk Board onto a 2214B trailer model.

Materials Include:

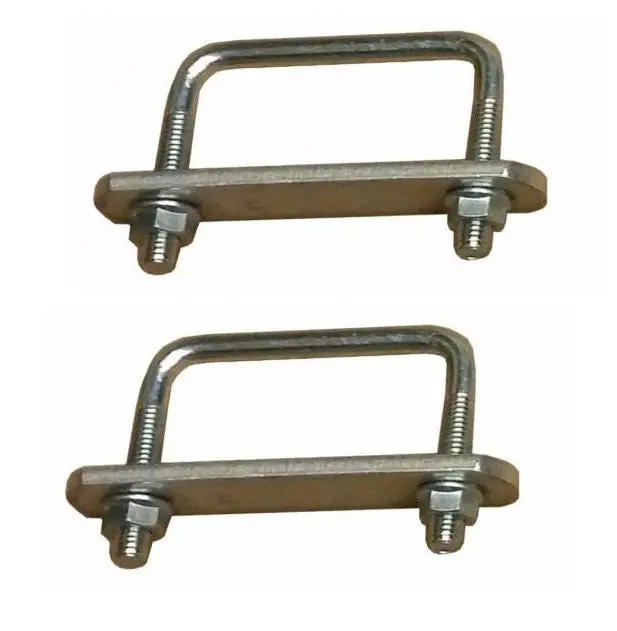

2 – 3/8″-16 x 3.06″ x 2.38″ Zinc U-Bolt
2 – 8.25″ x 1.5″ x .25″ Zinc Flat Plate
2 – 3/8″-16 x 1″ Zinc Hex Head Bolt
2 – Galvanized Angular Swivel Bracket
6 – 3/8″ Zinc Hex Flange Top Lock Nut

4 – 5/16″ x 1-1/2″ Galvanized Hex Head Lag Screw

MODEL: CFBNKKIT-2213B

Used on

PWT-2213BPWT-2214B
